Field Portable DR X-ray System with Flat Panel Detector Package
Saturn PX Portable DR X-ray Kit includes a 10” x 12“ or 14” x 17“ slim portable flat panel
detector set in a rugged wheel case and a portable x-ray system. The FPD features NMI’s
unique wireless communication method, AP mode. It allows users to directly connect to the
detector with laptops, tablet PCs and even smart phones without SCU. The rugged wheel case
ensures easy transportation and protects your valuable equipment. The portable X-ray
features an elegant outlook and durable design. Compact, lightweight, and with various
models ranging from 1.6KW to 5KW.
Features
- The FPD is compatible with mobile x-ray
- imaging equipment from multiple suppliers
- Ideal for practice in the field
- Durable water and dust resistant carrying case
- protects your valuable equipments
- Easier transportation with wheel case
- Available with multiple detector models

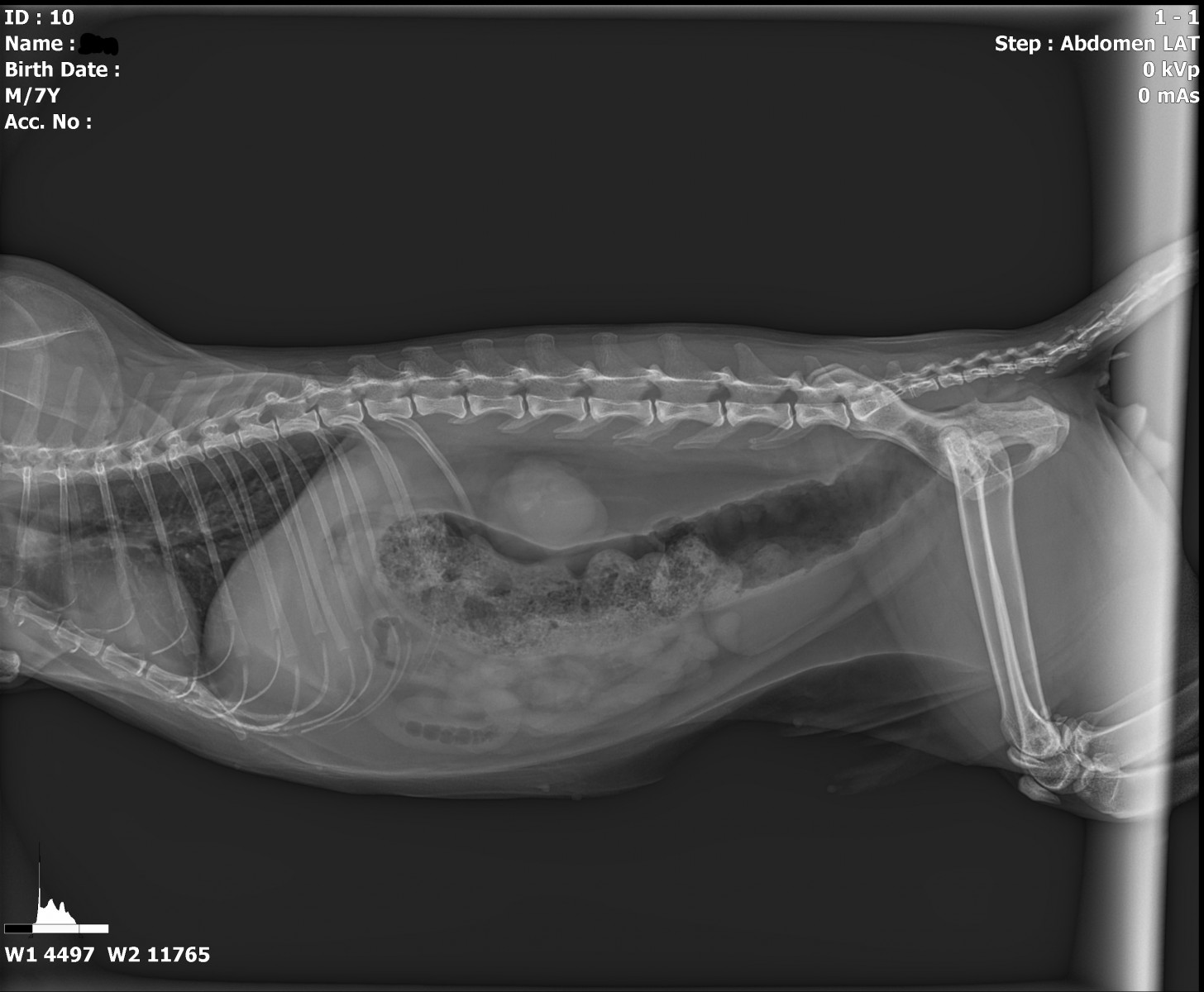

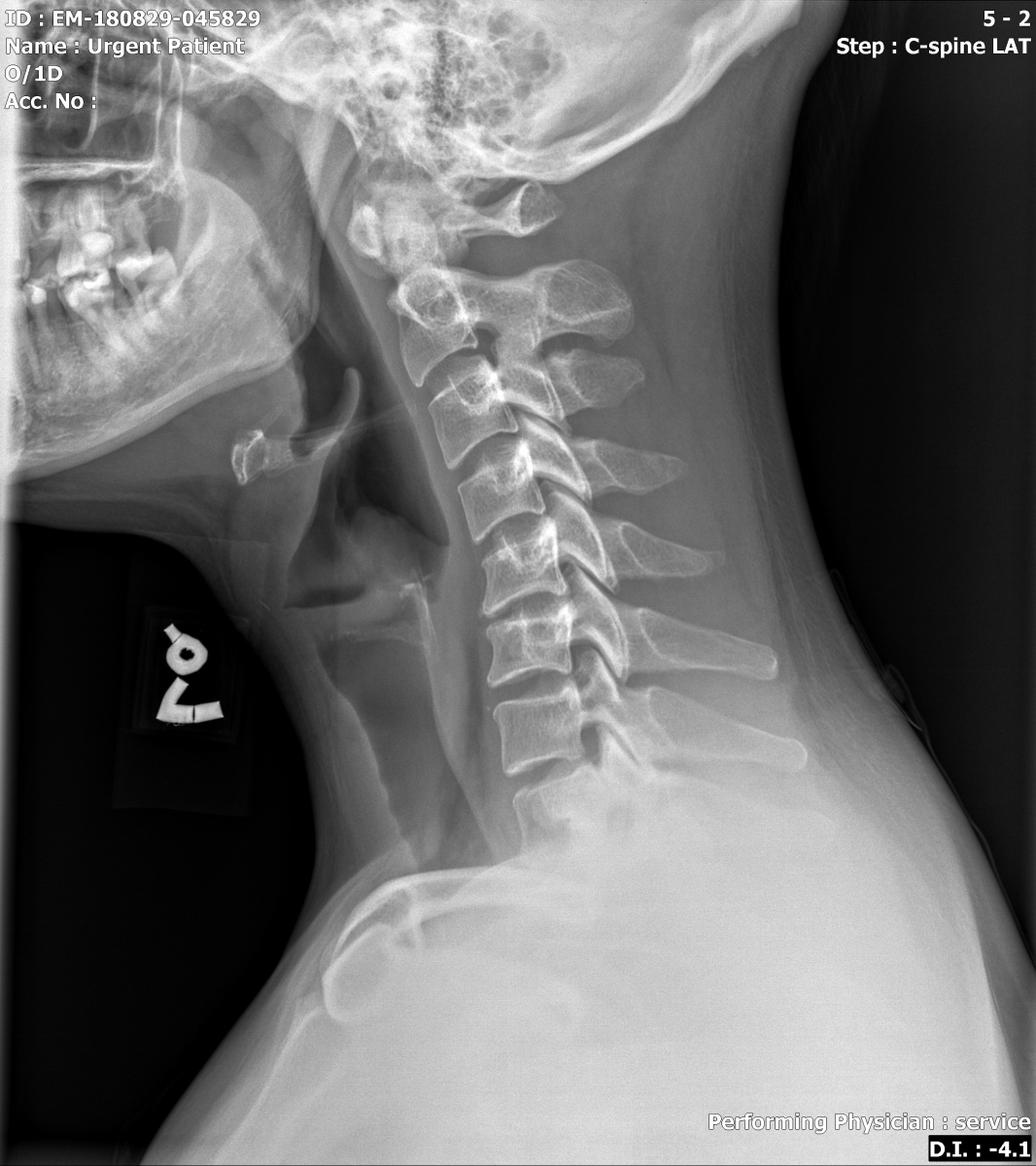

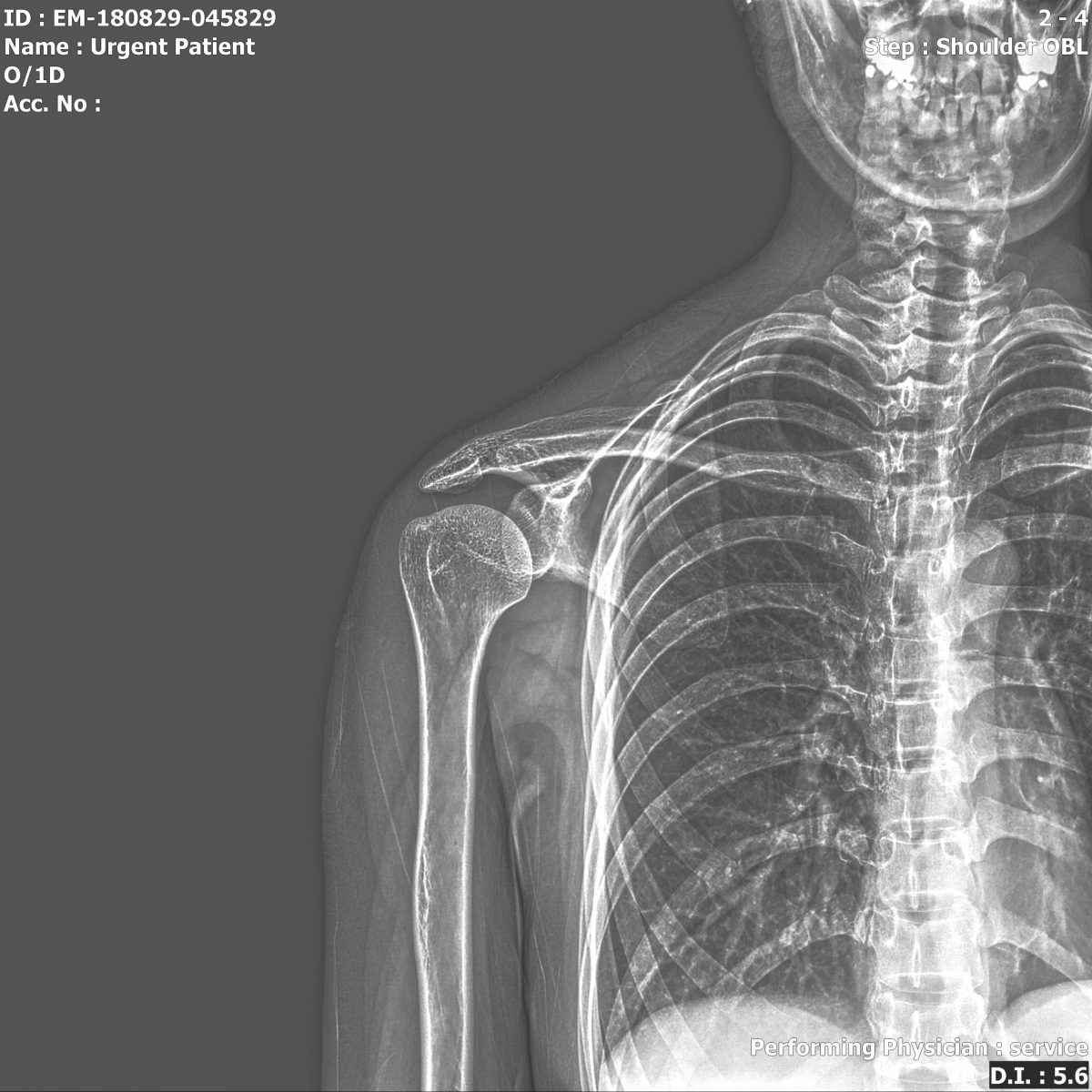

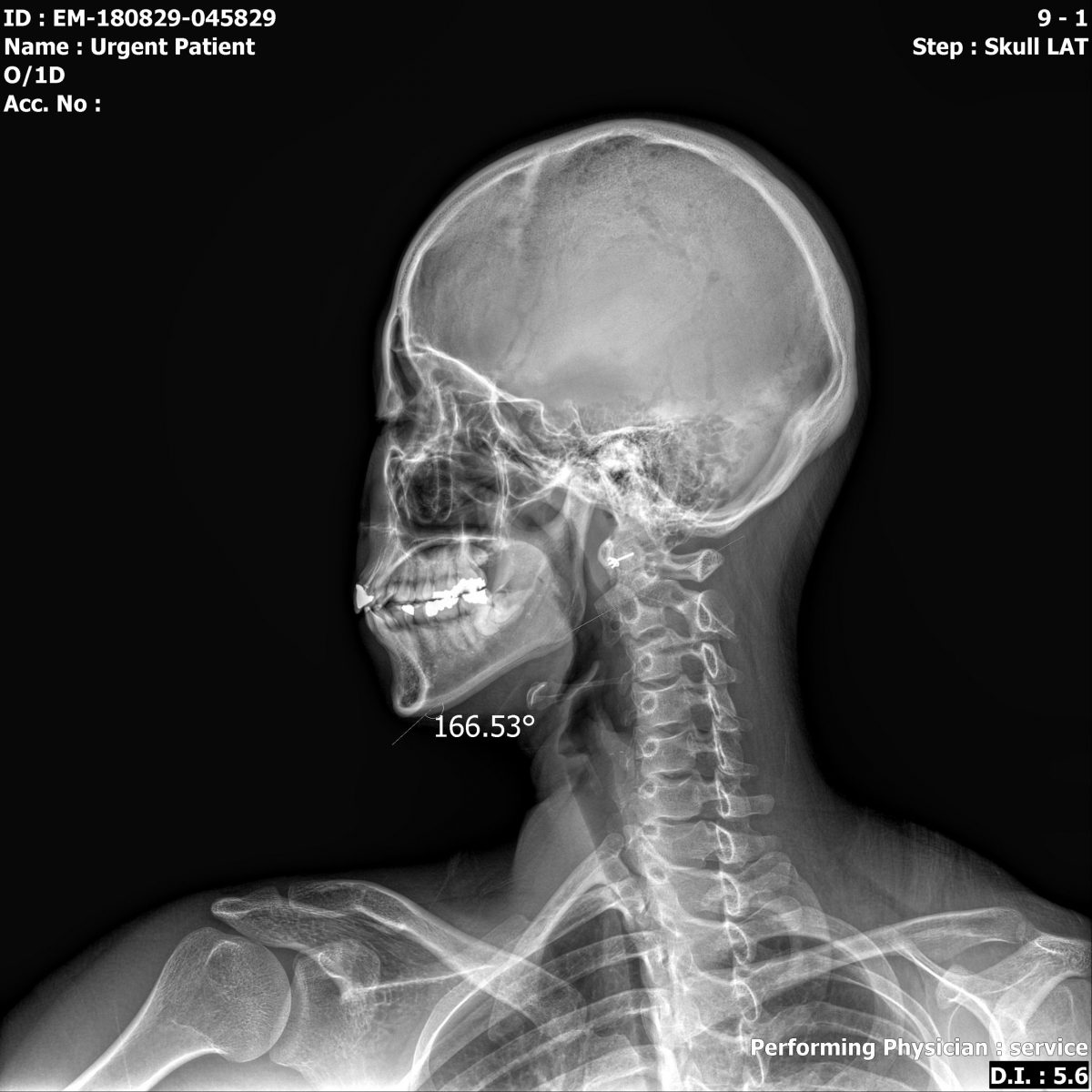

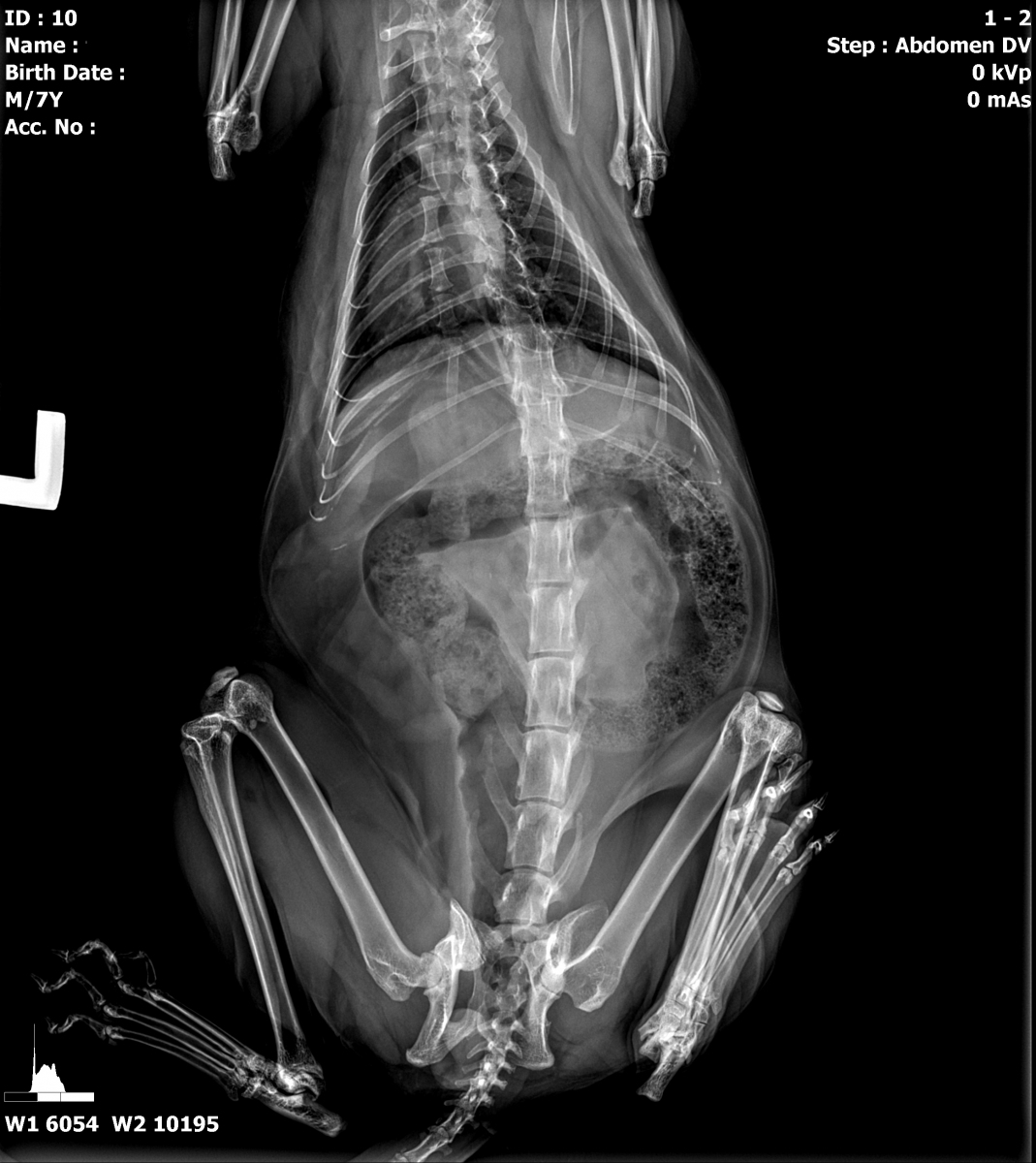

Acquired Images
Technical Specification
Portable X-ray
| Model Name |
FXRD-1012NW |
FXRD-1417N |
| Application |
General radiography, neonatal, ENT, equine and cephalometry |
| Technology |
Flat panel detector : a-Si TFT with PIN diode |
| Scintillator |
CsI:Tl / Gd2O2S:Tb |
| Pixel Pitch |
124㎛ x 124㎛ |
140㎛ x 140㎛ |
| Spatial Resolution |
4.0 lp/㎜ |
Min. 3.5 lp/mm |
| Pixels |
2,048 x 2,560 pixels |
2,560 x 3,072 pixels |
| Image Size |
10 x 12 inches (25 x 32cm) |
14 x 17 inches (35 x 43cm) |
| A/D Conversion |
16 bit |
| Grayscale |
65,536 steps |
| X-ray Voltage Range |
40 ~ 150kVp |
| X-ray Generator Interface |
Line trigger : DR Trigger Mode
Auto trigger : AED (Automatic Exposure Detection) Mode |
| Wireless Interface |
IEEE 802.11n (2.4GHz/5GHz dual band) |
IEEE 802.11n/ac (2.4GHz/5GHz dual band) |
| Image Acquisition |
1 sec (Wired), 3 sec (Wireless) |
1.5 sec (Wired), 3 sec (Wireless) |
| Dimensions |
350 (W) x 287 (L) x 15 (T) mm |
384 (W) x 460 (L) x 15 (T) mm |
| Weight |
Approx. 2.1kg |
Approx. 2.9kg |
| Operating Environment |
15 ~ 35℃, 30 ~ 85% RH (non-condensing) |
| Operating Time |
6 hours (Capturing Time), 8 hours (Standby) - without sleep mode |
| Power |
Wired: DC24V, Max. 17W, 1.0A
Wireless: 3,100mAh x 2 Lithium Ion Batteries |
| Model |
Saturn PX16 |
Saturn PX24 |
Saturn PX28 |
Saturn PX32 |
Saturn PX40 |
Saturn PX50 |
| Max Output Power |
1.6KW |
2.4KW |
2.8KW |
3.2KW |
4KW |
5KW |
| Generator FrequencLJ |
100KHz |
70KHz |
70KHz |
70KHz |
70KHz |
70KHz |
| kV Range |
40~90KV |
40~100KV |
40~120KV |
40~100KV |
40~110KV |
50~120kV |
| mA Range |
12~30mA |
16~40mA |
12~40mA |
25~60mA |
20~80mA |
0.4~200mAs |
| Focal Spot |
1.2mm ' |
1.2mm ' |
1.2mm ' |
2. 0mm ' |
1.8mm ' |
1.8mm ' |
| Target Angle |
19 ° |
16 ° |
16 ° |
16 ° |
15 ° |
15 ° |
| Anode Heat Storage |
10KHU |
50KHU |
50KHU |
40KHU |
42KHU |
42KHU |
| Input Voltage |
110V / 220V |
110V / 220V |
110V / 220V |
200V / 240V |
200V / 240V |
200V / 240V |
| Phase/FrequencLJ |
|
|
Single / 50~60Hz |
|
|
|
| Dimenson (mm) |
|
|
335*153*330 |
|
|
|
| Packing Size |
|
|
520*400*330 |
|
|
|
| Net weight |
6.8KG |
11KG |
12KG |
12KG |
12KG |
12KG |
| G-weight |
20KG |
22KG |
22KG |
22KG |
22KG |
22KG |
